DM INSTRUMENTS
Muffle Furnace
21000 INR/Unit
Product Details:
X
Muffle Furnace Price And Quantity
- 21000 INR/Unit
- 1 Unit
Muffle Furnace Trade Information
- 50 Unit Per Month
- 7 Days
- as per standard
- Western Europe Australia South America Eastern Europe Middle East Asia Central America North America Africa
- All India
Product Description

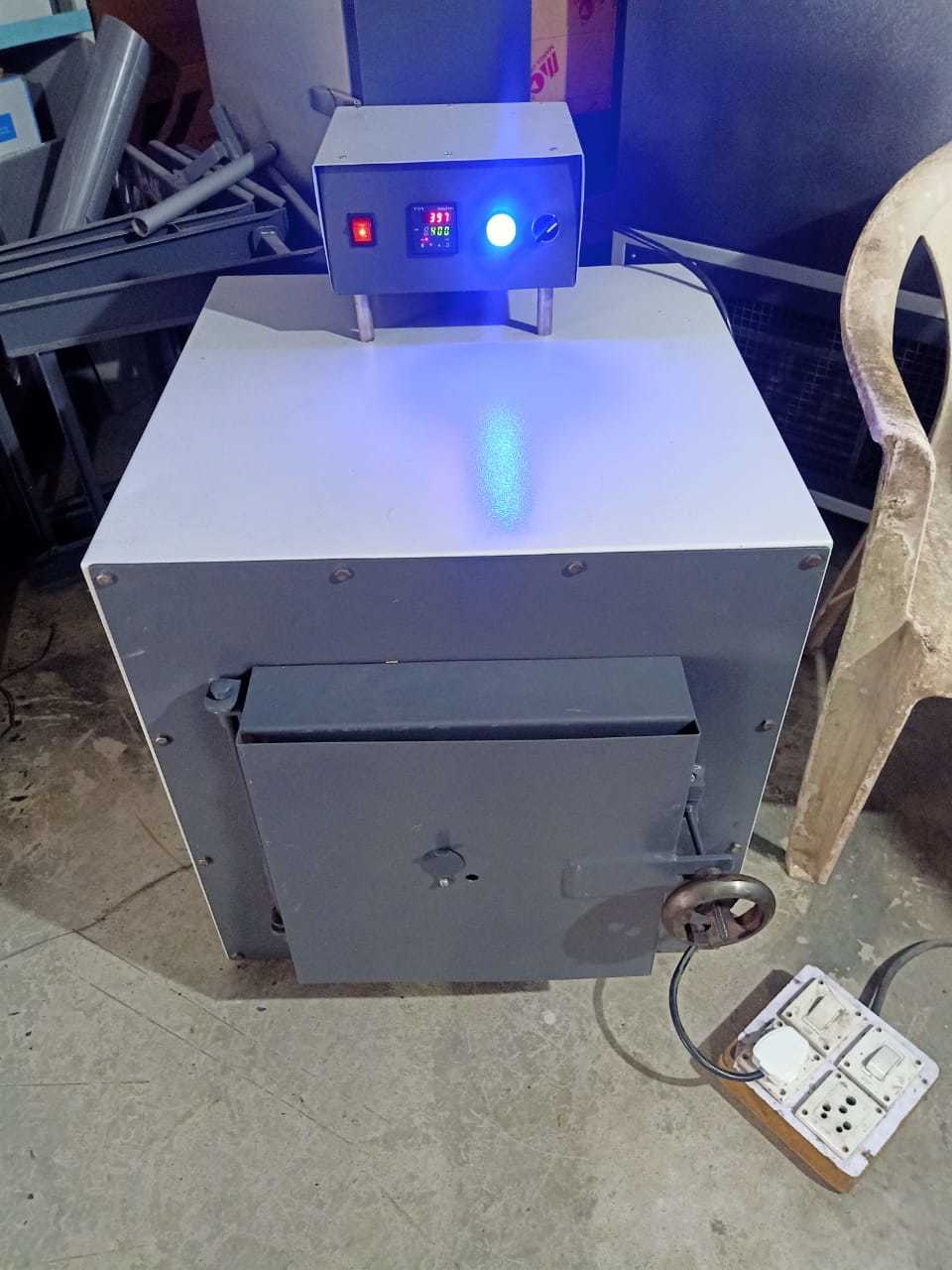

Muffle Furnace
| Melting Material | Iron |
| Material Loading Capacity (T) | LABORATORY USE |
| Power Source | Electric |
| Type Of Furnace | Fix |
| Rated Power (KW) | 3 TO 7 KW |
| Input Voltage (V) | 230 AND 440 V |
| Furnace Voltage (V) | 230 AND 440V |
| Max OperatingTemperature | 1150 |
Salient Features
- Ceramic fiber wool insulation to reduce weight and size of furnace.
- Less heat up time is
- Nominal heat-loss resulting in power saving
- Built in vent port for removal of noxious gases etc.
- Provision of hole with cover in the furnace door to insert temp sensor for calibration purpose
- Construction : CRC sheet - attractively powder coated
- Max Temperature : 1200C
- Working Temperature : 1150C
- Temperature control : Dual display microprocessor based Digital temperature indicator cum controller
- Temperature Sensor : K - type sensor
- Heating elements : KANTHAL A-1 wire in coil form placed in the Elements ribs & easily replaceable
- Circuit Wiring : As per CE Norms
- Operation on : 220/230 Volts, Single phase, AC Supply
- Available in following sizes:
-
- election Guide
Inner chamber size (mm) (H x W x D) Power consumption (Kw) Approximate Weight (Kgs)
225 x 100 x 100 (9 x 4 x 4) 1.5 60
250 x 125 x 125 (10 x 5 x 5) 2.0 71
300 x 150 x 150 (12 x 6 x 6) 3.0 82
300 x 200 x 200 (12 x 8 x 8) 5.0 115
450 x 225 x 225 (18 x 9 x 9) 6.0 125
- election Guide
